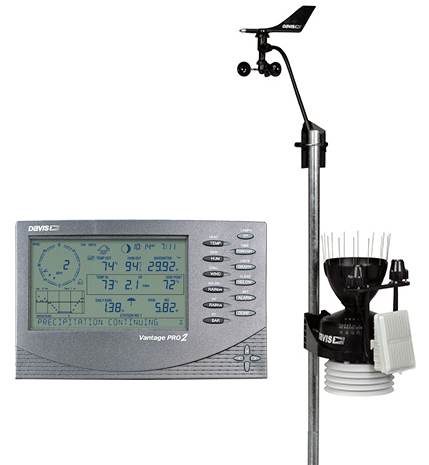

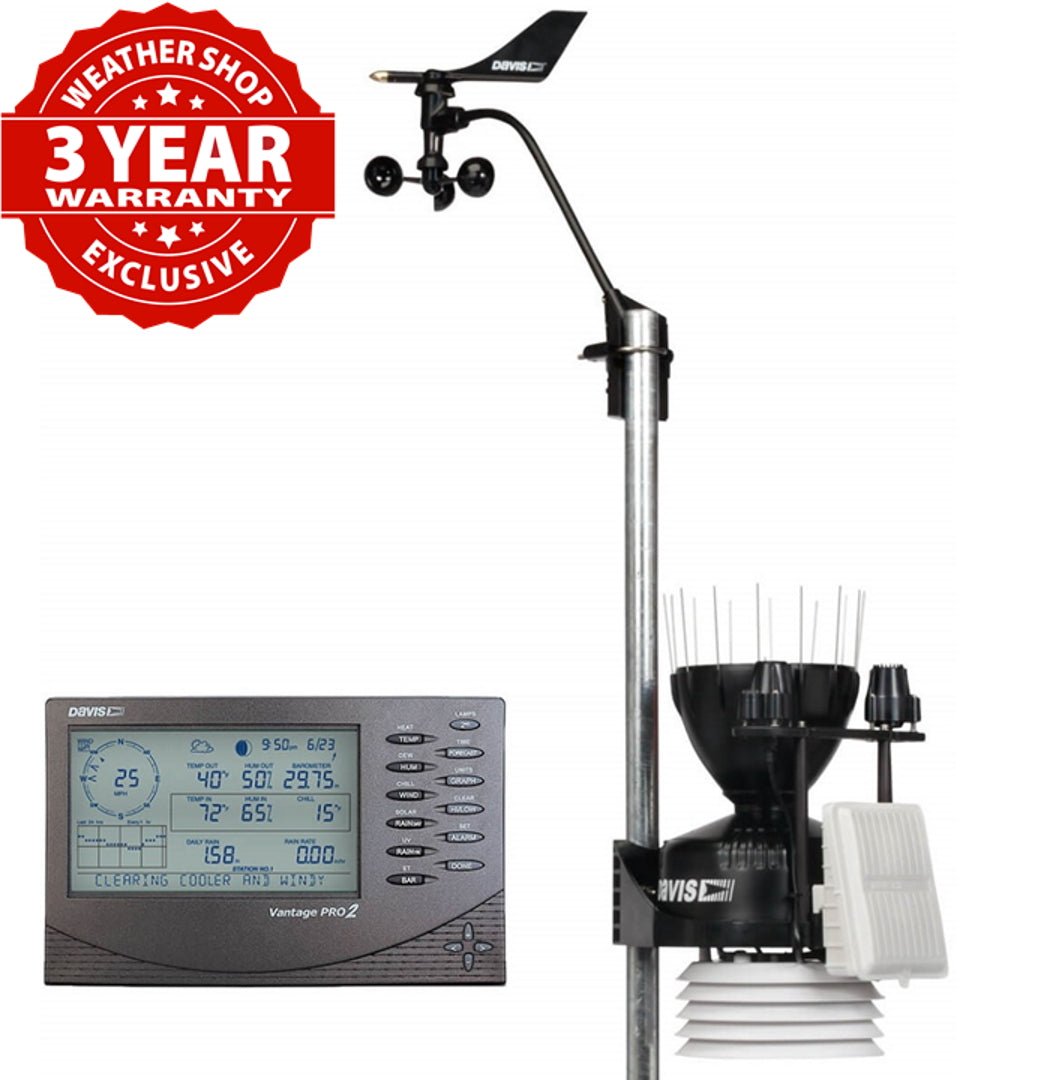

Davis Vantage Pro2 Plus Cabled - 6162CUK (Includes UV & Solar Radiation Sensors)

Brand : Davis Instruments

Country of Manufacture : United States

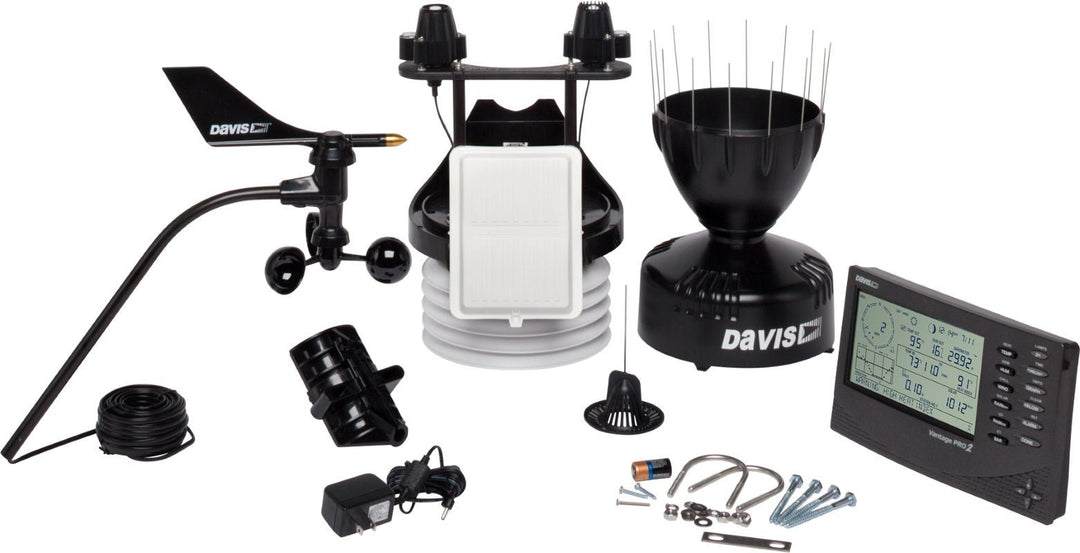

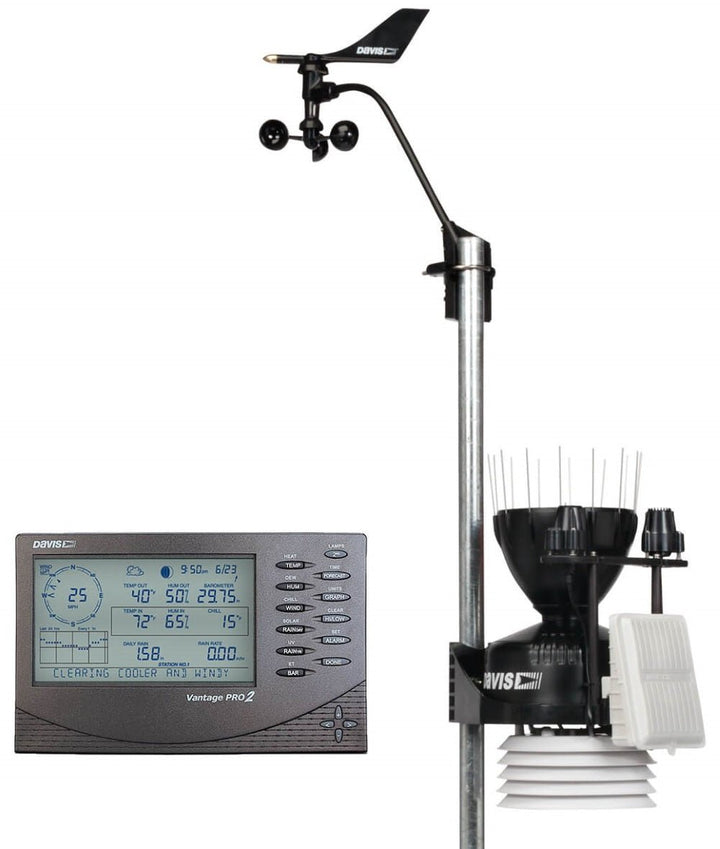

Contents : Vantage Pro2 console/receiver

Integrated sensor suite (includes rain collector, temperature and humidity sensors, anemometer, solar and UV sensors). Electronic components are housed in a weather-resistant shelter

Mounting hardware

40 ft (12 m) anemometer cable

100 ft (30 m) cable to link the console and integrated sensor unit, which can be considerably extended if required.

Ideal For : Professional, Agronomy

Measurements (Industrial) Filter : Barometric Pressure, Dew Point, Evapotranspiration, Humidity, Rainfall, Solar Radiation, Temperature, UV, Water Temperature, Wind Direction, Wind Speed

New Typical Applications Filter : Environmental (Outdoor), Field Research, Weather Monitoring

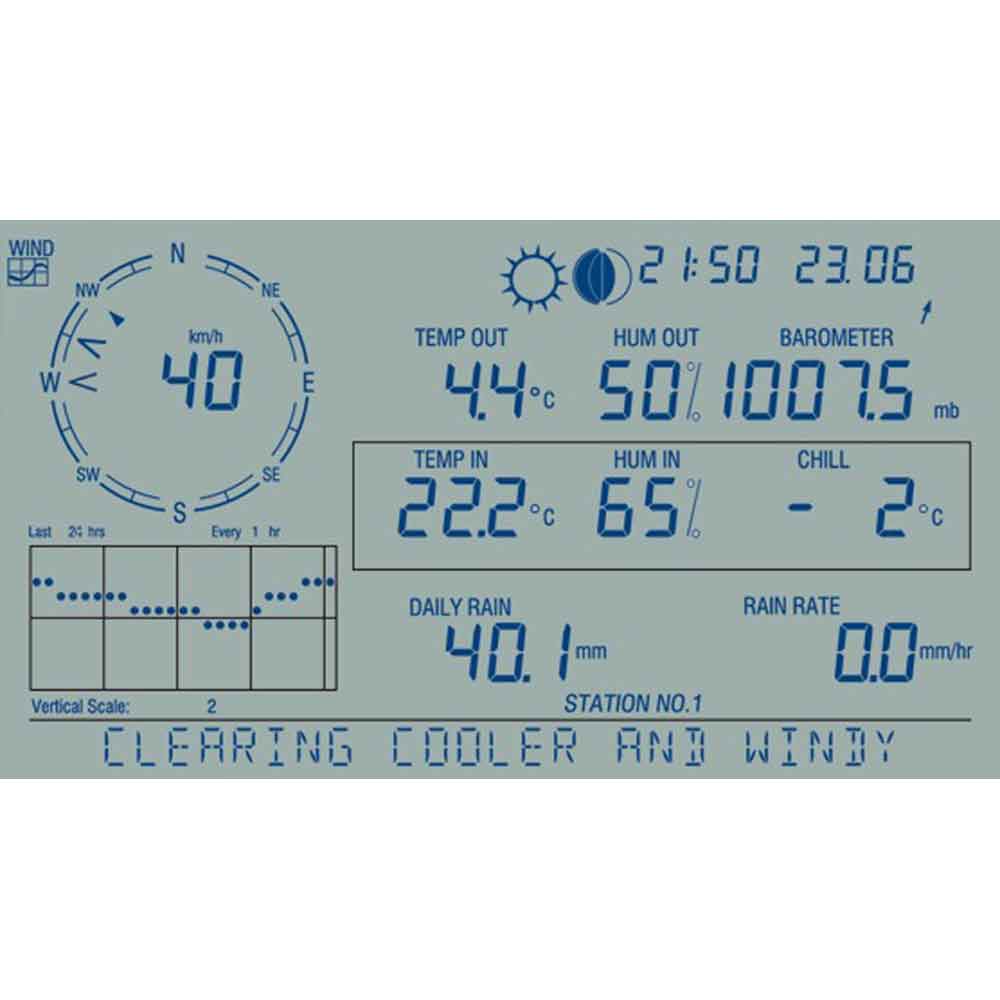

Indoor Unit : Console with large 90 x 150 mm, backlit LCD screen.

Clear easy-to-use navigation keypad.

Barometric Pressure in the range 540-1100 hPa displays mb, hPa or in/mm Hg.

Indoor temperature in the range 0° to 60°C displays °C or °F.

Indoor humidity in the range to 0% to 100% RH.

12 / 24 hour clock with day / month date.

Moon phase displayed in quarters.

Local weather forecast icons tell you what to expect in the next 12 hours.

Current & historic data or highs and lows for up to 24 days, months, or years.

Ticker tape at foot of screen shows expanded forecast and additional information on current conditions with more than 100 different messages.

Flip out table stand or wall mount.

Computer : PC, web or mobile app access with optional WeatherLink 2.0 data logger and software.

Finish : Sculptured dark grey plastic case.

Dimensions : 155 x 245 x 40mm

Batteries : 3 x C batteries (console battery backup)

Power : AC adapter with battery backup. UK 230V adapter included (EU 230V supplied to EU orders)

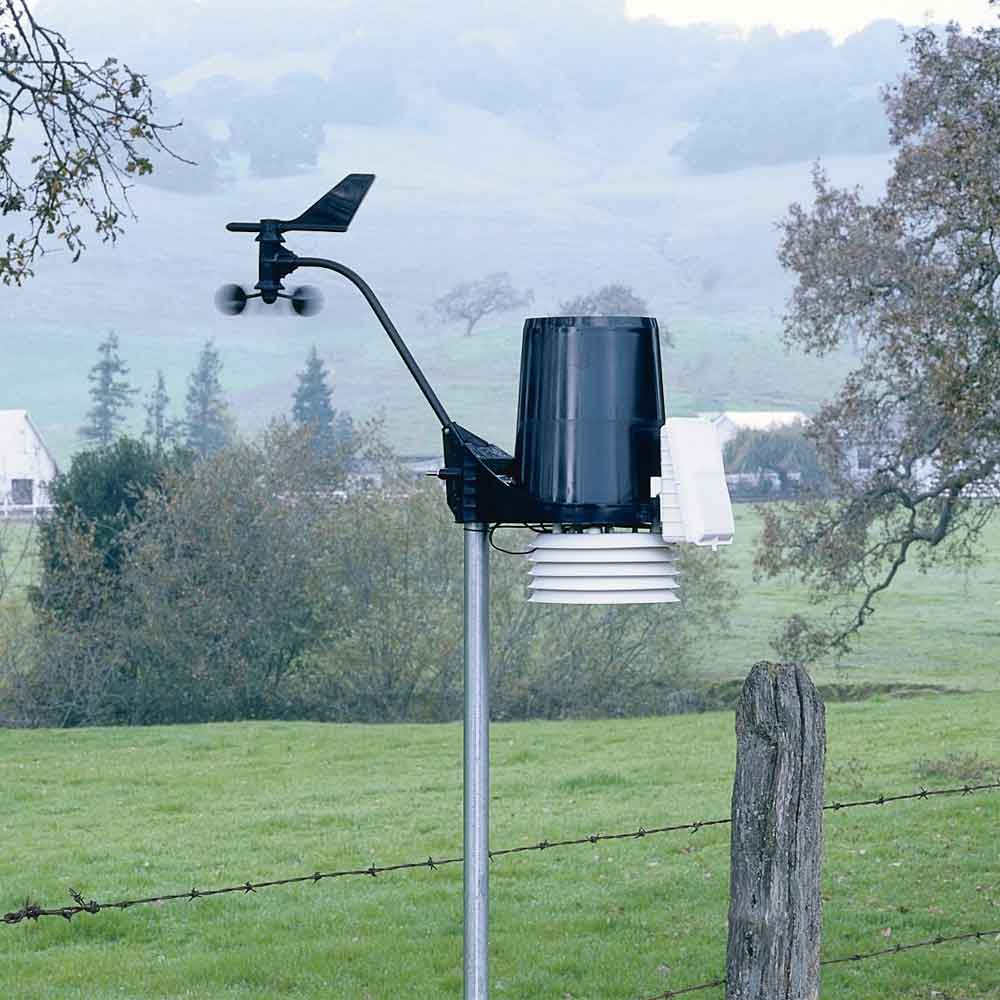

Outdoor Unit : The Integrated Sensor Suite (ISS) includes the tipping bucket rain collector, the radiation shield for the temperature / humidity sensor and the solar and UV sensors. The tipping bucket mechanism records rain every 0.2mm and is chrome plated to reduce loss through evaporation.

The anemometer is supplied with a 12m cable to plug into the ISS transmitter.

Sensors : Wind Speed displayed in the range 2 to 150mph displayed in mph, knots, m/s or kph.

Wind Direction displayed in 16 points of the Compass Rose or 0° to 360°

Temperature in the range -40°C to +65°C displayed in °C or °F.

Relative Humidity in the range 0% to 100%.

Rainfall in mm or inches and rate in mm or inches per hour.

Solar radiation in the range 0 to1800 W/m2 and energy in the range 0 to 1999.9 Ly.

UV Dose in the range 0 to 199 MEDs and Index from 0 to 16.

Calculated values for windchill, dew point and heat index and evapotranspiration.

Dimensions : 350 x 220 x 360 mm

Power : Powered from Console

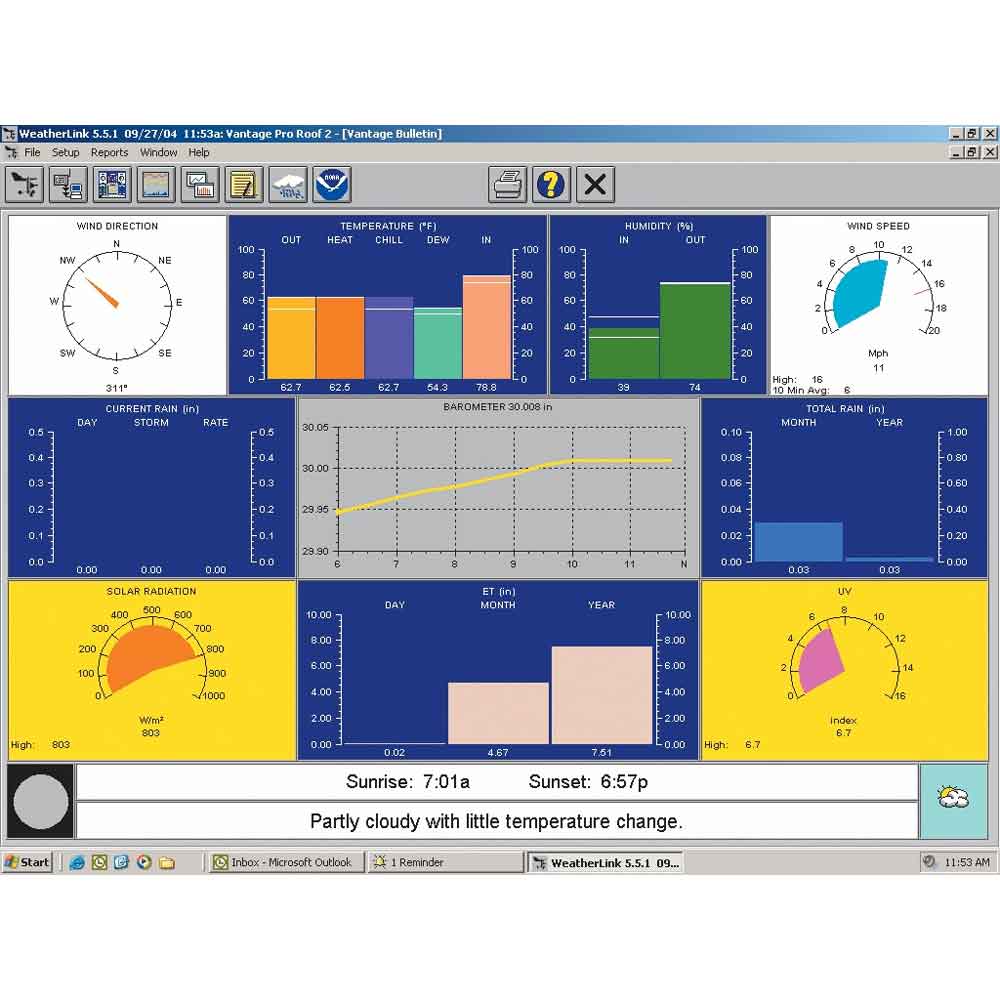

Software : Access your weather data anywhere & anytime

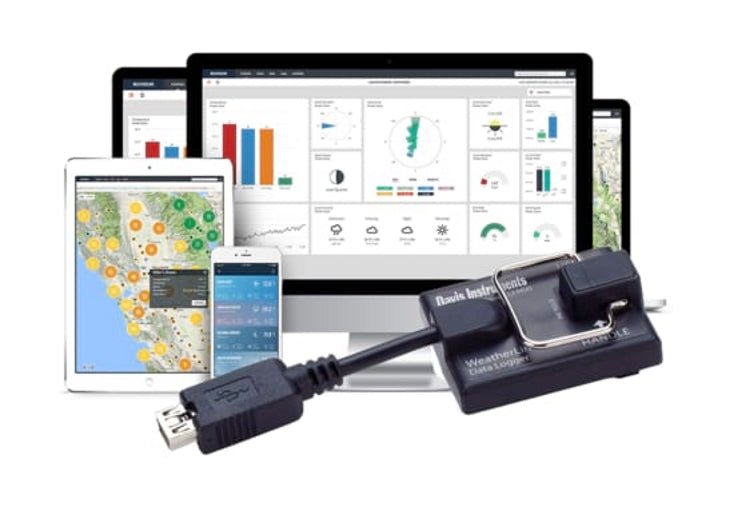

With optional WeatherLink software and data logger, you can access, store and graph your weather data on your PC with WeatherLink® 2.0 software, or online at WeatherLink.com and WeatherLink Mobile Apps (iOS and Android).

Installation : Installation is very simple and can be carried out by almost anyone with a few basic tools. The only thing you should remember is to take care if you have to work at height.

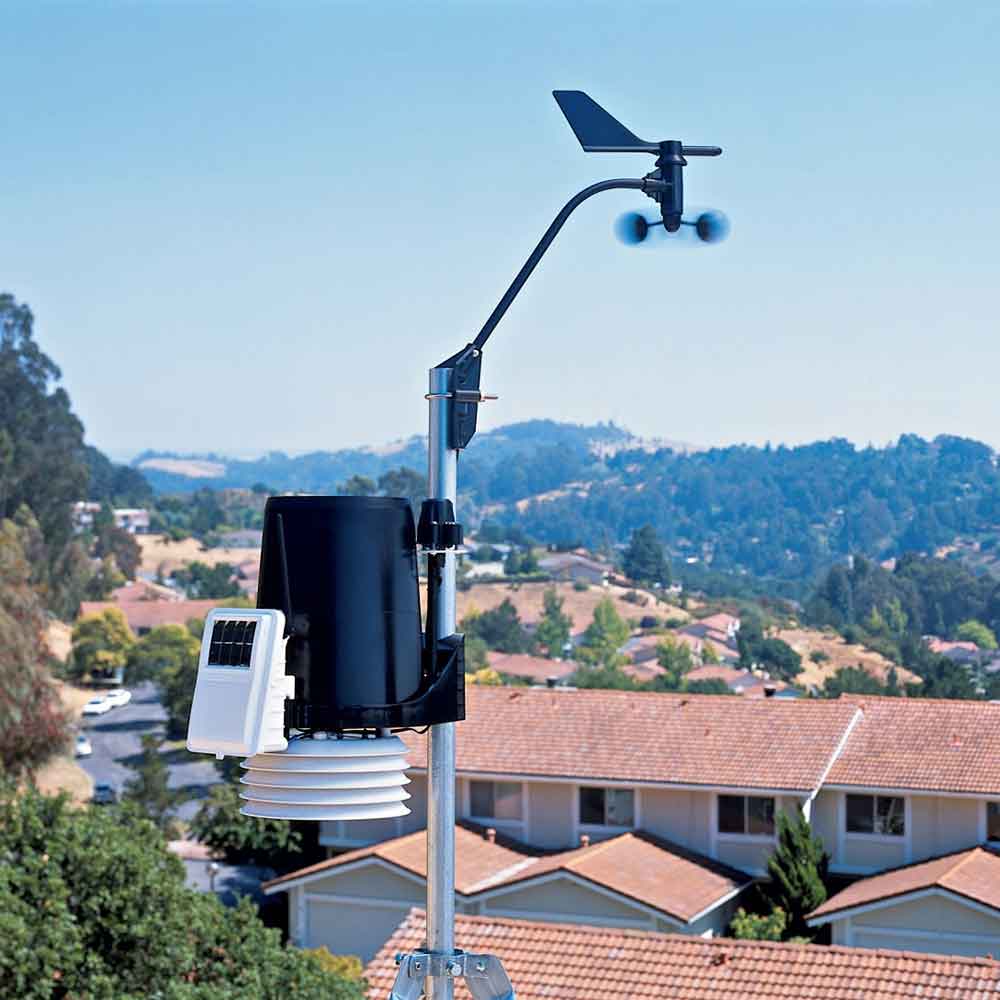

The outdoor sensor suite and anemometer are supplied with U clamps for a 45mm Ø pole and coach screws for a post or wall. Larger U clamps can be used up to 65mm Ø

Installations options such as tripods and mounting pole kits are available from our Installation Kit pages.

Davis weather stations require very little maintenance and do not require regular recalibration.
